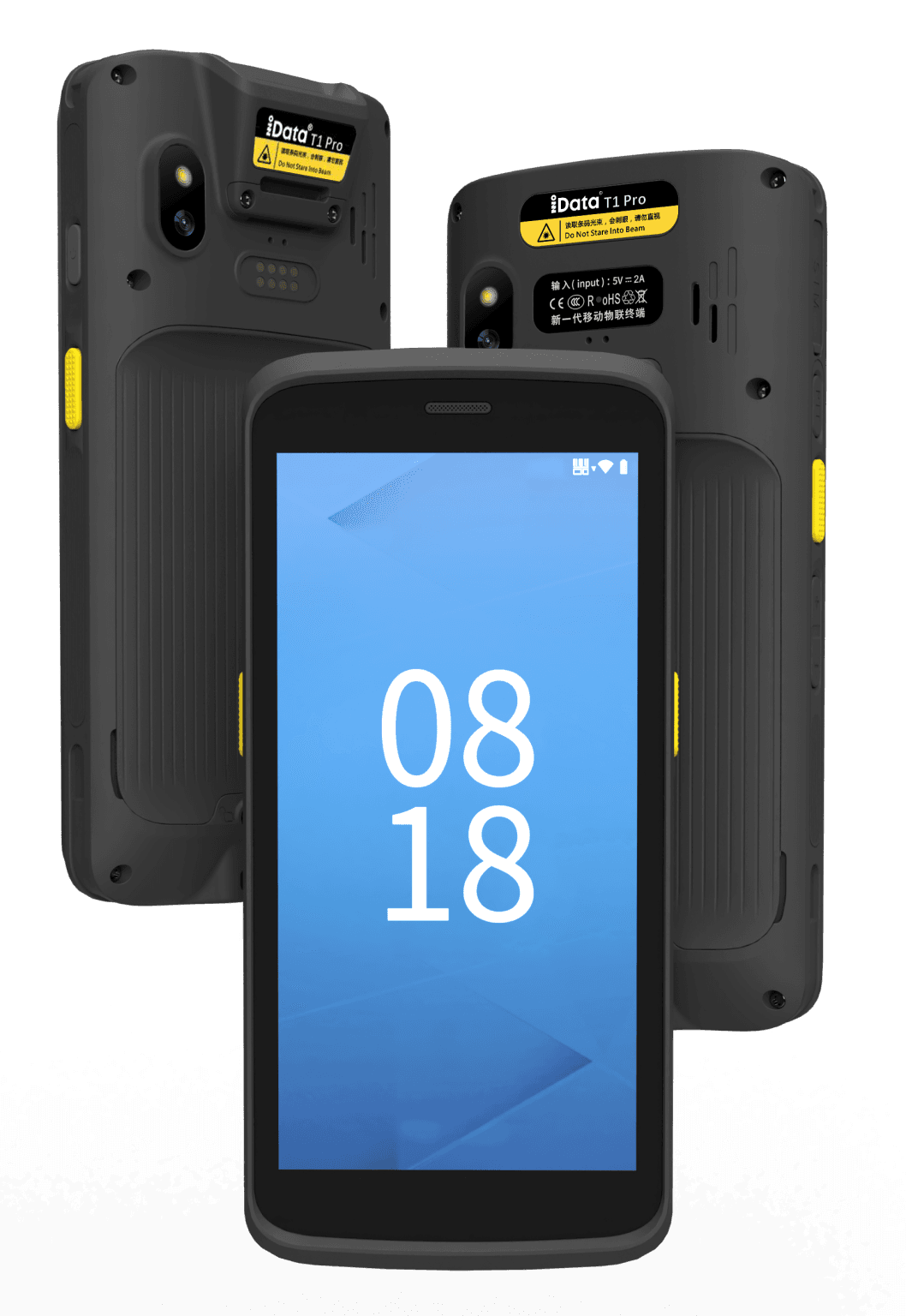

T1 PRO
Next-Gen

iData

T1 PRO

T1 PRO - Next-Generation Professional Smart Terminal - Enhanced in Multiple Aspects, a More Powerful Mobile Working Assistant

โทรสอบถามราคา
ราคาอาจเปลี่ยนแปลงตามการกำหนดสเปกและจำนวนสั่งซื้อ
OS
OSAndroid
Memory
Memory64GB+4GB (standard)
Display
Display1440*720 px
Battery
Battery5000mAh detachable battery, support backup battery
Ingress Protection
Ingress ProtectionIP67/IP65
Drop Specification
Drop SpecificationMultiple drops to concrete floor from the height of 1.5m
Processor
ProcessorOcta-core 2.0GHz high-performance processor
Free Shipping
FREE SHIPPING
1 Year Warranty
1 YEAR WARRANTY
Technical Support
TECHNICAL SUPPORT

Detailed Information

The iData T1 Pro has seen upgrades in various configurations and form factors compared to its predecessor. With a more powerful core and additional enhancements, the device can support more business operations. The latest iData scanning engine, available in both right-angle and tilt-angle options, allows the device to adapt to more diverse work scenarios. The newly upgraded detachable battery design, backup power support, and various charging accessories significantly enhance the efficiency of device clusters. Use Case: Store Management, Inventory Management, E-commerce Shipping, Production Management

Key Features

Multiple Enhancements for Comprehensive Business Support

The newly upgraded CPU boasts an AnTuTu benchmark score exceeding 200,000*, paired with the latest Android 14.0, providing frontline workers with a user experience comparable to mainstream smartphones. Increased memory and flash storage support allow workers to pre-install and run more applications, effortlessly supporting more business operations.

Enhanced Scanning Performance for Versatile Operations

Featuring iData's latest scanning engine, the device can quickly capture almost any 1D/2D barcode. The support for mid-range and long-range scanning engines expands operational scenarios. With both right-angle and tilt-angle scanning options, the 27° optimal scanning angle enables easy scanning and information confirmation without lifting the device.

Improved Battery Life for More Efficient Cluster Operations

The newly upgraded 5000mAh removable battery design with backup power support greatly enhances the device's battery life. When the device is low on power, there is no need to shut it down; simply replace the battery, and it is ready to use immediately. With various charging accessories, the device can achieve higher efficiency in scenarios requiring large-scale cluster operations, such as warehouses and sorting centers.

Product Highlights

CorrectAnTuTu benchmark score exceeding 200,000*
CorrectAndroid 14.0 ให้ประสบการณ์ใช้งานเทียบเท่าสมาร์ทโฟนทั่วไป
CorrectScanning engine รุ่นล่าสุดของ iData รองรับ right-angle และ tilt-angle, optimal scanning angle 27°
Correctรองรับ mid-range และ long-range scanning engines
Correctแบตเตอรี่ removable 5000mAh พร้อม backup power support, เปลี่ยนแบตได้ทันทีไม่ต้องปิดเครื่อง
Correctรองรับ charging accessories หลากหลายสำหรับ cluster operations ขนาดใหญ่ เช่น warehouses และ sorting centers

Datasheet Access

ดาวน์โหลด Spec Sheet ฉบับเต็มพร้อมแบบ Drawing มิติ

Download PDF

TECHNICAL HELP

ต้องการ Configuration พิเศษ? ทีมวิศวกรพร้อมปรับแต่งผลิตภัณฑ์ ตามความต้องการ ระยะเวลา Customize 7-35 วัน

ปรึกษาฝ่ายเทคนิค
arrow
Detail

Detailed Technical Specifications

COMPONENT
SPECIFICATION DETAILS
Processor
Octa-core 2.0GHz high-performance processor
Operating System
Android 14.0 (GMS)
Memory (ROM+RAM)
64GB + 4GB (standard)
SIM (eSIM: Not supported)
Select two out of three available SIM card slots, support dual SIM and dual standby - two cards can be inserted at the same time, Nano SIM card + Nano SIM card / Nano SIM card + TF card. WIFI ONLY version: SIM not available, not supported
Expansion Slot
Micro SD card (up to 512GB). WIFI ONLY version: SIM not available, not supported
Display Screen
5.5-inch, resolution: 1440*720 pixels, IPS
Touch Screen
Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch
Camera
13MP rear camera, support auto-focus/PDAF, 5MP front camera
Flashlight
1A flashlight
Keypad
6 keys in total: side scan key *2, side power key *1, volume key *2, custom key *1
Battery
3.85V lithium battery, with 5000mAh, detachable, support backup battery. Execution Standard: GB31241-2022
Audio
Built-in dual microphone (noise-canceling microphone)
Charging Method
Type-C charging and pin port charging, support 18W fast charging
Reminder
Vibration reminder/LED reminder/Audio reminder
Vibrating Motor
Built-in vibrating motor
Sensors
G-sensor/Proximity sensor/Light sensor. Optional: Gyroscope/geomagnetic sensor/high-precision barometer
Intercom Function (Optional)
Support one-button PTT calls
Dimension (L*W*D)
160.7mm * 74.9mm * 15.4mm
Weight
278g (including the battery)
Working Temperature
-20°C - 60°C. *Do not charge under low temperature conditions for the safety concerns
Storage Temperature
-40°C - 60°C (without the battery)
Humidity
0 - 95% (no moisture condensation)
Drop Specification
Multiple drops to concrete floor from the height of 1.5m
Roller Drop Specification
1000 times of roller drops from a height of 0.5 meter
Ingress Protection
IP67/IP65
ESD Protection
±15KV (air discharge), ±8KV (contact discharge)
WWAN (Network Frequency) - China & Eurasian version
2G: B2/B3/B5/B8. 3G WCDMA: B1/B2/B5/B8. TD-SCDMA: B34/B39. 4G FDD-LTE: B1/B3/B5/B7/B8/B20. 4G TDD-LTE: B34/B38/B39/B40/B41
WWAN (Network Frequency) - Global version
2G: B2/B3/B5/B8. 3G WCDMA: B1/B2/B4/B5/B8. TD-SCDMA: B34/B39. 4G FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B. 4G TDD-LTE: B34/B38/B39/B40/B41
WWAN (Network Frequency) - WIFI ONLY version
SIM not available, not supported
WWAN (Data Service)
GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE. WIFI ONLY version: SIM not available, not supported
WLAN Function
Wi-Fi 802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v/w. RF: 20/40/80MHz bandwidth (2.4GHz + 5GHz dual-band Wi-Fi), support fast roaming
Bluetooth
Bluetooth 5.0, support BLE
GPS
GPS/AGPS/BDS/Galileo/GLONASS/QZSS
Barcode Type
It can scan one-dimensional / two-dimensional barcodes
Scanning Accuracy
≧3.33mil
Scanning Angle
Pitch: ±60°; Skew: ±45°; Tilt: 360°
View Angle
Horizontal 44.3°, Vertical 28.4°, Diagonal 51°
Motion Error Tolerance
8m/s
Working Frequency (NFC)
13.56 MHz
Reading Distance (NFC)
Within 40 mm
Communication Protocol (NFC)
ISO14443A/14443B/15693
USB Interface
Type-C (with headset function) *1
OTG Interface
Support
Programming Language
Java
Development API
iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool
Eclipse/Android Studio
